> Home > Product > Robot XiaoAo

XiaoAo-3 Brief description


1. Appearance design

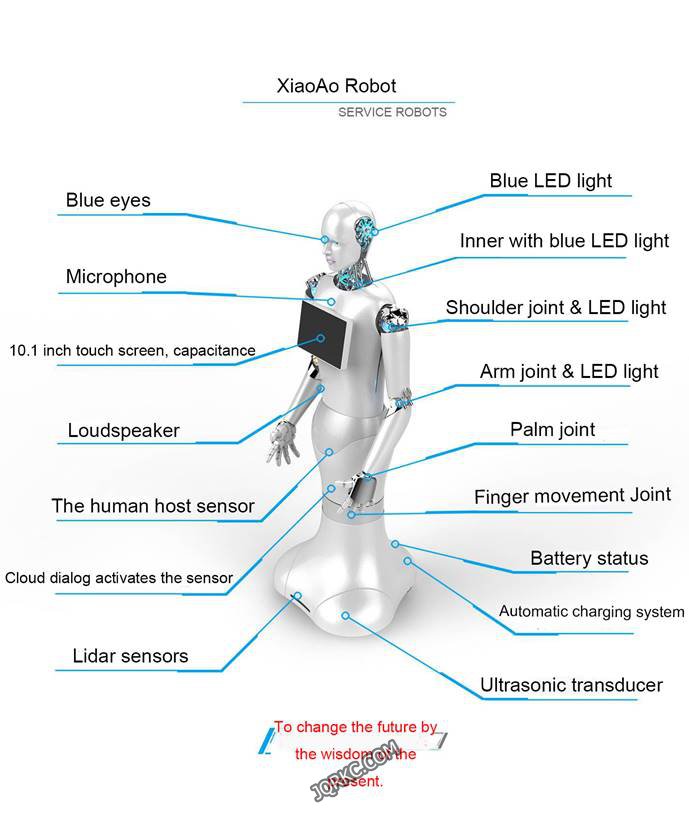

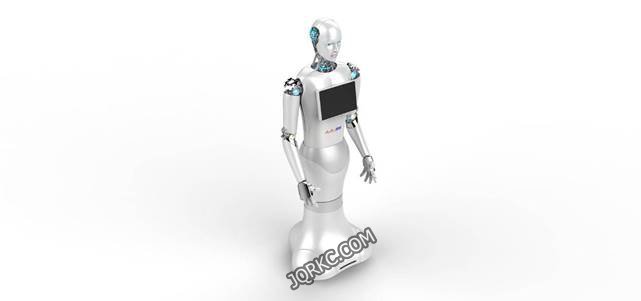

【1. Appearance sketch】




jiqiren 0212

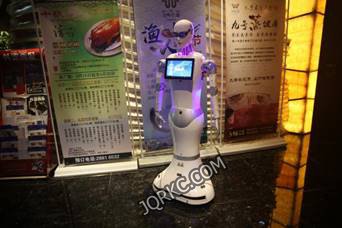

【2. Application scene photo】



mmexport1522737581918mmexport1522737566855

mmexport1521861413276  IMG_20171214_094638  IMG_20180404_121430

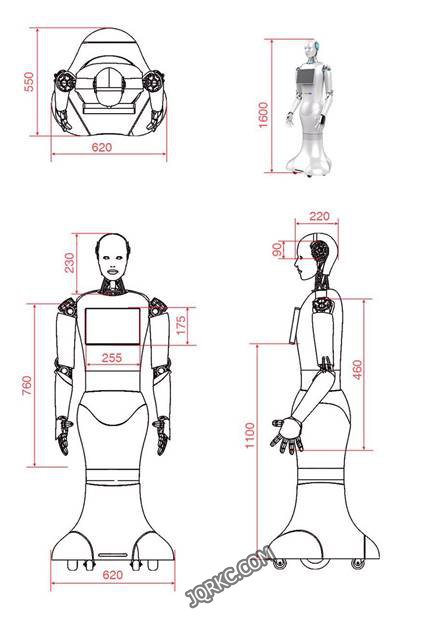

【3. Appearance size drawing】

小澳

【4. Functional description】

XIAOAO
2. Application scene
Application scene hotel、bank、administrative centre、restaurant、science and technology museum、museum、library、hospital、school、sales center、shopping Mall、cinema、car 4S stores、banquet hall、wedding celebration、opening ceremony etc.
Functions overview welcome、explanation、guide to visitor、shopping guide、marketing、consultation、Fun chatting、host guest、promote product、education etc.
Custom scenario function steps 1、provide scenario requirements    2、consult if you can develop this feature      3、consulting development cycle     4、consulting development cost
5、Sign bespoke agreement            6、check and accept product function


3. Main function
  Function Content
1 Body language You can move your head, your neck, your arms, your palms, your hands, and your fingers. You can perform the whole body movements, perform different parts, and explain as you go.
2 welcome & farewell Different route direction automatic induction of human body, and broadcast the greeting, farewell speech language, support custom display images, custom in different countries, different areas of language.
3 guide After the guest voice interaction, the robot leads the guest to the designated point and returns to the starting point (to be customized).
4 product explanation It can play audio explanation, picture, video and other forms of advertising information, or related publicity content, full display of new product features and related services.
5 business consulting Customize the voice dialogue, support the construction of industry data model and mass knowledge base (to be customized),  answer all kinds of business consulting problems, and continue to optimize learning  intelligently.
6 host guest Support custom lines, complete release of important messages to final task.It can be in the form of dialogue, explanation, sports and other forms of interaction.
7 presented etiquette Can participate in Awards ceremony, complete the presentation of prizes etiquette work.Can complete all kinds of publicity materials, exquisite gifts delivery work.
8 expression interaction In the scene of switching mode and speech, the robot respectively uses corresponding dynamic expressions and feedback sound to achieve good interaction with the audience.
9 fun chatting Through the cloud and voice interaction, can achieve fun chatting; support for everyone, children's voice, cartoon pronunciation.
10 circular preaching In the uninterrupted group visit activities, the robot can automatically cycle operation according to the custom work mode and the walking route of the organizers, and complete the safe and efficient propaganda and reception work.
11 arbitrary control Through the APP, voice, remote control to achieve a variety of operations, publicity and promotion.
12 private consultant During private visits and leadership visits, the robot works as a private consultant, adapt to on-site changes and questions, and completes flexible and interesting interpretation reception work.
13 multipoint instruction Multipoint navigation, and custom multipoint explanation.
14 face identification Face recognition can be used to welcome guests or VIP guests.
15 handshake Face recognition allows guests to greet and shake hands


PS:The above functions are suitable for proper use, and the effect is better.


4. Technical parameters

Model of robot XiaoAo-3
Base parameters
Height 160cm Weight 45kg
Total freedom 28 Head freedom 4
Arm freedom 22 Chassis freedom 2
Number of single chip microcomputer Chassis 1+upper body 1 Body science fiction LDE 10
Finger tightness Steering wire Finger, arm, head material 3D printed ABS engineering plastics
Screen 10.1 inch,Hd color LCD screen Screen type 10 touch screen, capacitance
Screen resolution (dpi) 1920*1080 FULLHD Camera Two million pixels
Size(mm) 217*136 mm Batteries and specifications Polymer lithium battery 24V12AH
Move mode Wheeled, forward, backward and turning Chassis structure Triangular steel
Microphone Four mic arrays, reduce noise Loudspeaker Dual speaker
Internet Connections WIFI Support bluetooth Yes
Charging time (h) ≤8h(normal 6h) Working Time (h) ≥8h
Rated input voltage (V) 220VAC Rated output voltage (V) 24VDC
The distance of the human sensor to the guest 4~5m Ultrasonic distance 1~2m
Rated output current (A) 2A Rated power (W) 48W
Control parameter
Remote control walking Control the walking of the robot from front to back through mobile APP and remote control;Response time is less than 100ms Lidar navigation walks Robots scan indoor lidar to build flat maps
Multipoint navigation The robot can go to different points to explain, then go to the next point to explain different content Voice control (optional) The robot responds to voice commands and completes the requirements of moving around, playing songs and so on
Dialog system activation mode Human sensor + ultrasonic sensor Dialog system sleep time The sensor was not responsive for 5min
Encounter obstacles The robot will bypass obstacles and continue walking Control mode APP control, remote control, voice control
Safety function
Emergency cut-off To press the key to stop the working robot immediately Detection of obstacle avoidance Real-time monitoring of obstacles in front of the robot, measuring distance of 80 cm
Pedestrian detection Real-time monitoring of no one passing by, someone coming to say hello Balance protection Body weight can be balanced and the waist won't fall
Convenience function
Remote voice play Remote control robot plays audio file, audio file can be edited through text to audio software, easy to play the client propaganda voice Remote operation mode switch Robot remote control or tracking mode can be selected through mobile APP and remote control
Remote control adjustment parameters APP control design sensor distance and walking speed Set the node number APP control to set the node number
Remote software upgrade When the software is upgraded, the system automatically downloads the upgrade package, prompting the user to upgrade Ultrasonic parameter Forward two, left and right two, adjust and control respectively
Multimedia parameter
Picture format:jpg            resolution:1920*1080 Video frequency format:mp3                          frequency range: 32kbps-320kps
Video format:mp4          resolution:1920*1080       Text format:xml
Attachments
The standard of service Instruction, warranty card, prompt label, daily maintenance The standard packing Pearl cotton, wooden case
The standard accessories 1 remote controller, 1 charger The standard tool 1 set of inner hexagon tool wrench and 1 set of outer hexagon tool wrench


5. Product configuration


Model number Freight Standard configuration Optional
XiaoAo-3

Do not include, calculate freight according to specific area. Charger, charger base, remote control, screwdriver kit, wooden box. Flight case

機器人小澳介紹
